049 Signal Tower Multi-Compact
General
The MULTI – Compact signal towers are used for the visual display of operating states on machines, systems and production facilities.
They guarantee excellent all-round light emission with high luminosity and extremely long service life
Characteristics
Operating voltage 24V AC/DC
Up to 4 levels
Free color design of each stage from white, blue, green, yellow, red, clear
Simultaneous display of different operating states possible
Protection class IP 54 or IP 65
CE compliant
Integrated flasher available, for each color level can be selected separately between flashing and continuous light
Integrated acoustic part available, switchable between interval and continuous tone
Robust housing made of polyamide, black
Light filter material PC tansparent, impact-resistant
Light filter colours according to VDE 0113 or EN 60204–1
Low power consumption with very long service life
Flashing operation via PLC possible
Direct mounting with two M4 studs
Electrical connection via screw terminals, max. 1.5 mm²
Cable gland optionally on the side or on the back of the case
Easily replaceable with other devices
Scope of delivery:
Completely ready for connection
Options
Electrical connection via flange plug in the terminal compartment
Tripod design, pipe length according to customer requirements
Wall bracket mounting with plastic angle
Magnetic base on the case back (cable gland on the side)
Flange
Other housing colors on request
| Technical data | ||||
| Voltage: | 24V DC | |||
| Current consumption at 24V AC/DC: | 100 mA function red | |||
| Current consumption at 24V AC/DC: | 100 mA function yellow | |||
| Current consumption at 24V AC/DC: | 140 mA function green | |||
| Current consumption at 24V AC/DC | 10 mA function acoustics | |||
| Electrical connection: | Screw terminal connector, max. 1.5 mm² | |||
| optional: | Flange plug 3- or 6-pole | |||
| Available bulbs | Number | Wavelength | Total luminous flux | |
| LED, red | 12 | 617 nm | 14 | |
| LED, yellow | 12 | 587 nm | 14 | |
| LED, green | 12 | 525 nm | 10 | |
| LED, blue | 12 | 469 nm | 2,6 | |
| LED. Know | 12 | 5600 K | 10 | |
Anschlussbelegung ohne Akustikfunktion
Anschlussbelegung mit Akustikfunktion
Stehbolzen

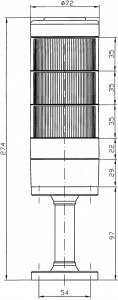

Stativ

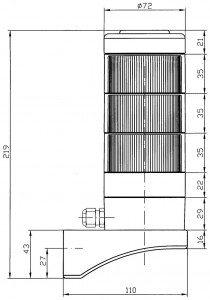

Wandhalter
Montageflansch
Magnetfuß
Please understand that we cannot list all possible combinations here.
You can put together your desired configuration yourself in the tab “Individual Configuration” at the top of this page.
Here is an excerpt from our order range:
| Order No. | Mounting | Cable outlet | Color Level 1 | Color Level 2 | Color Level 3 | Color Level 4 | Flashing function | Acoustics | Assembly |
| 1-841.08.5.00 | Magnetic base | lateral | Gn | Ge | Rt | – | no | no | 3m cable |
| 1-841.09.1.00 | Tripod | below | Gn | Ge | Rt | – | no | no | 1.5m cable |
| 1-841.09.2.00 | Stud | below | Gn | Ge | Rt | – | no | no | without |
| 1-841.09.2.01 | Stud | below | Gn | Ge | Rt | – | no | Yes | without |
| 1-841.09.2.02 | Stud | below | Ge | Gn | Rt | – | no | Yes | without |
| 1-841.09.2.03 | Stud | below | Bl | Ge | Gn | Rt | no | Yes | without |
| 1-841.09.2.04 | Magnetic base | lateral | Gn | Ge | Rt | – | no | no | without |
| 1-841.09.2.05 | Stud | below | Bl | Ws | Ge | Rt | no | no | without |
| 1-841.09.2.06 | Magnetic base | lateral | Gn | Rt | – | – | Yes | no | without |
| 1-841.09.2.07 | Stud | below | Bl | Kl | Ge | Gn | no | no | without |
| 1-841.09.2.08 | Stud | below | Bl | Ge | Rt | Gn | Yes | Yes | without |
| 1-841.09.2.09 | Magnetic base | lateral | Gn | Rt | – | – | Yes | Yes | without |
| 1-841.09.2.10 | Stud | below | Gn | Ge | – | – | no | Yes | without |
| 1-841.09.3.10 | Stud | below | Gn | – | – | – | no | no | without |
| 1-841.09.3.11 | Stud | below | Gn | – | – | – | no | with | without |
| 1-841.09.4.00 | Stud | below | Rt | – | – | – | no | no | without |
| 1-841.09.4.02 | Stud | below | Rt | – | – | – | no | with | without |
| 1-841.09.4.20 | Stud | below | Bl | – | – | – | no | no | without |
| 1-841.09.4.21 | Magnetic base | lateral | Bl | – | – | – | no | no | without |
